Product Details

200W LINEAR HIGHBAY----- SA-LHB200-001


50W,100W,120W,150W,200W & 250W

LINEAR HIGHBAY SERIES

LINEAR series took power saving for indoor light application to next level with >110lm/W efficacy.


LINEAR series modern design with thermal management Die-casting , high luminous SMD3030


BEAM ANGLE

                                                            COLOUR OPTIONS

linear .jpg                                           color opinion.jpg









-       Industrial warehouse

-       Production line

-       Showroom


LED MODULE

SA-LHB200-001   (200W)


TECHNICAL DATA

Mains Voltage90 - 305V / 50/60 Hz
Ra75 & 80
Luminous flux20,000lm to 27,000lm (depending on LED   module)
Driver Brand Meanwell
Chips BrandPhilips& Nichia
Dimming0-10V,10V PWM, DALI
InstallationChain Mount
Materials   Aluminium, tempered lens
IP CodeIP65
Impact ratingIK08
Net Weight5.75Kg/12.7Lb
Gross Weight6.55 Kg/14.4Lb
Product Size720*250*175mm
Package Size780*280*200mm
Flammability   markF
Safety ClassClass 2
Accessories60,90,120 degree
Certificates   DLC,CE, RoHs, ISO

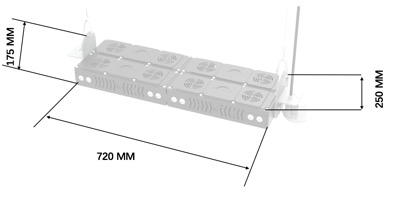

DIMENSIONS (MM)

200w linear size.jpg

 INSTALLATION OPTIONS

200W LINEAR -01.jpg

CASE EXAMPLE

Linear Example.jpg
